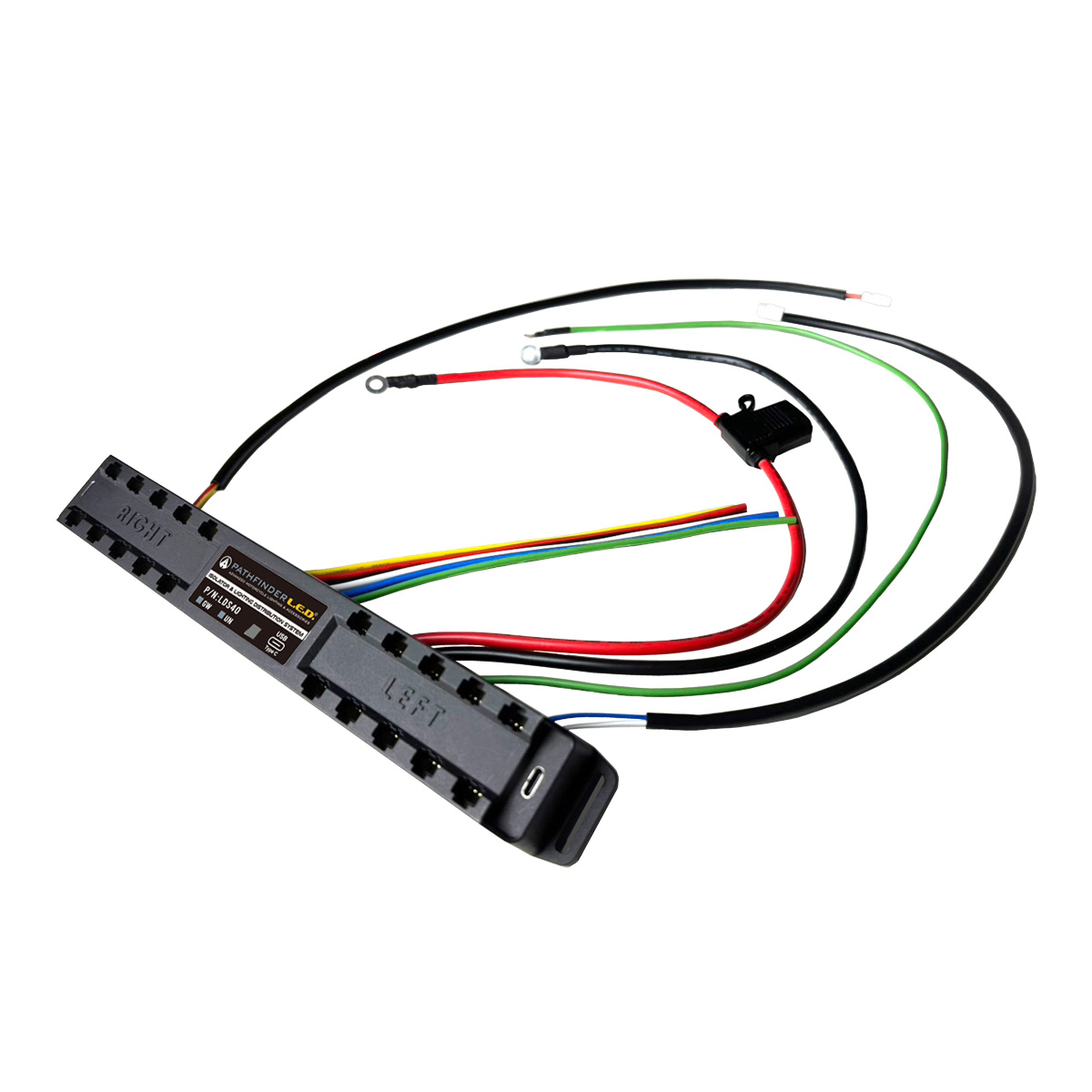

[LH40UN] LIGHTING DISTRIBUTION HUB/ISOLATOR W/USB-C PORTS (UNIVERSAL FITMENT MODEL)

THIS MODEL IS NOT FOR HONDA GOLD WING - USE PN#LH40GW for GOLD WING LIGHTING DISTRIBUTION HUB.

UNIVERSAL - LIGHTING DISTRIBUTION/ISOLATOR HUB W/USB-C

[Customization may be necessary for proper fitment on your bike].

Easily connect all your LED lighting to one central location and keep your wiring neatly routed to the new PATHFINDERLED LIGHTING DISTRIBUTION/ISOLATOR HUB. PATHFINDERLED lights can connect via plug n play directly into this canbus isolated hub. Other branded 12v lighting can also connect to the "Aux" output wiring or using PN#P2UNA adapters, ou can wire one end to you lights and the opposite end plugs directly int to the LH40UN via plug n play.  Now you can power/charge your USB electronics by connecting them to the integrated USB-C ports (2x) and further isolate extra wiring/adapters. 10amp trailer/accessory wire output is provided on the unit. Smart E-fuse protection on all output and a Heavy Duty 40amp inline fuse protects the unit from the battery.

• Two (2) USB-C Charge Ports (15w ea) Power/charge your phone/gps/dash cam.
• Built-In Smart eFuse + an inline power fuse for comprehensive protection.
• Independent protection for each circuit - reset via ignition On/Off
• Total Power Capacity: 40 amps (Ships with 30Amp Fuse) Non-Replaceable fuse
• LED status indicator
• Six (6) Wire Trailer Harness (10 amps) can also be used for accessory
• 20 individual Power Ports (3amps ea) - 10 Right and 10 Left (Brake / Running / Turn)
  - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

  Available and Sold Separately:
• PATHFINDERLED TO UNIVERSAL ADAPTER (P/N#P2UNA)

  *THIS UNIT IS NOT PLUG N PLAY IF NOT USING PATHFINDERLED LIGHTS.
  All other wiring would need to be hard wired and or by using (WAGO type connectors)

*Heated Gear should always be directly connected to the motorcycle’s battery as it's fuse is built inline with the provided wiring.

*Fog lights connect directly to the Honda factory OEM connectors and are not installed thru the LH40GW

*Protected by Internal eFuse - DO NOT REPLACE EXTERNAL FUSE IF BLOWN. CONTACT PATHFINDERLED.
