HONDA GOLD WING GL1800/F6B/VALKYRIE LED FOG/COWL LIGHT KIT.
As of 06-15-2023 we will be shipping v2 of this fog light. The installation of v2 is slightly different and is not shown in the cruiseman's video. Please continue to follow the installation video for all other steps. Version 2 of the fog lights had two additonal wiring. One wire connects the fog lights together and the 2nd auxilary wire connects directly to your ACC + terminal by the fuse block. This update is so that the fog lights will receive constant power and by adding additional LEDs in the turn signal circut in the future, it should not affect the performance of the fog lights. Resistors should no longer be required to be installed on the fog lights.
Why is the GL18RFL better than competing models? Based on customer feedback, our fog lights put out a directional flat projected beam rather than a scattered light. We have built in LED driving lights to make you more visible on the road
whether you're riding during the day or at night.

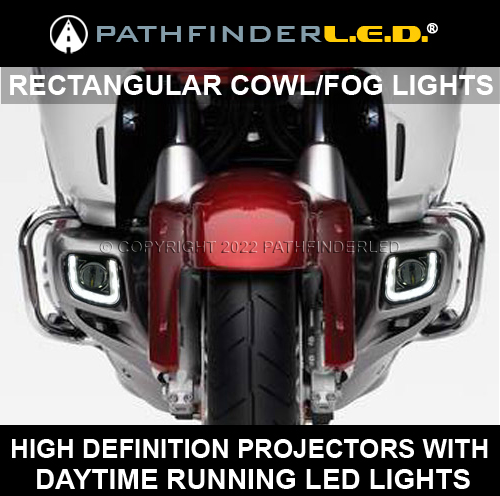

[GL18RFL] FOG LIGHT WITH INTEGRATED DAYTIME RUNNING SWITCHBACK LIGHTS
Designed from the ground up! Our all-in-one design adds powerful LEDs to brighten up the road while the LED DAYTIME RUNNING LIGHTS enhances the look on your motorcycle and promotes better visibility on the road. When your signals come on the dual switchback technology will activate the amber LEDs (GL1800/F6B). Modernize the look of your bike with this single projector with High Definition Optics that produce a clean white light. These lights throw a wide horizontal beam sure to light up ditches and cuts through the rain/fog like never before. Our engineers added the Daytime Running Lights to sport the new look of modern vehicles. DRL's (Daytime Running Lights) stay on and when you activate your turn signals they switch to BLINKING AMBER.

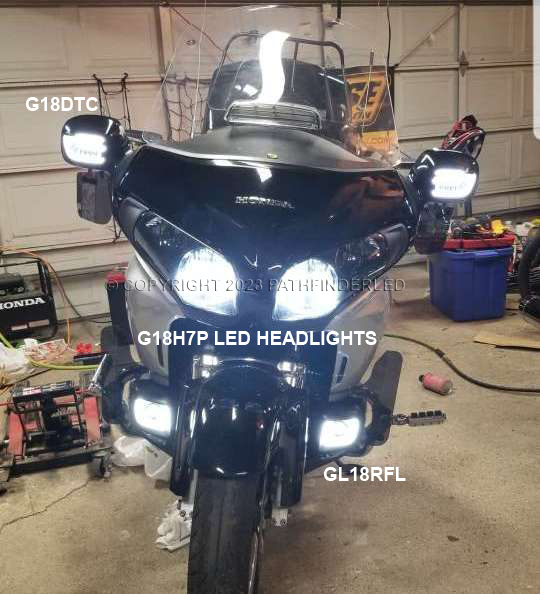

2012-2017 GL1800/F6B/VALKYRIE LED FOG LIGHT KIT W/DAYTIME LED and WHITE-TO-AMBER SWITCHBACK technology. You get 3-in-1!
This is the best Driving/Fog Light LED upgrade available. These lights will also update the look on your motorcycle with Daytime Running Lights. 2001-2010 models can also upgrade to these lights. You need to purchase the Show Chrome #52-908 rectangular cut-out cowl. When ordering these lights for your 2001-2010 model, please choose your model year from the radio buttons above and be sure to note in the comments field during checkout that you have a 2001-2010 model. We need this information so that we can send you the correct FOG Light Switch.
- For Honda Stock Cowls 2012+/F6B/VALKYRIE [OEM Style look]
- High Definition LED Fog Lights
- LED Daytime Running lights with AMBER switchback turn signals
GL18RFL OPERATION (GL1800/F6B MODELS):
The “WHITE” DRL lights come on when there is power to the motorcycle. The Amber DRLs are controlled via your Left and Right Turn signals. The Fog lights turn on and off via the Fog Light switch and are controlled independently from the DRL lighting.
NOTE: Kit comes complete with all mounting hardware and OEM replacement Fog light switch (Plug N Play). The switch alone costs over $40 at the Honda Dealer.
Due to different lighting conditions, LED running lights are only used to enhance the look of the bike and should not be solely relied on for driving conditions.
GL18RFL SPECIFICATIONS PER LIGHT -------------------------------------- F6B MODELS |
VALKYRIE F6C OWNER'S READ BELOW: Good news! There is now a solution for Valkyrie owner's. There is now full functionality for the turn signals to work with your motorcycle. There is an available harness adapter that you can purchase to complete this installation. Click here to view the A-GL18RFL Adapter Harness installation instructions |
INSTALLATION NOTES: Regarding Cruiseman’s Installation Video.
The older Cruiseman’s video was filmed using Posi-Tap connectors during installation. The current shipping version for 2006-2017 includes Plug N Play adapters and no longer uses the Posi-Tap connectors. 2001-2005 GL1800 Models requires adapter part number: 0105A. F6B models requires adapter part number: F6B1A
Factory included spacers: There is (2) 16mm and (1) 20mm included in this kit. There was an error in Cruiseman’s video that included 2pcs of 20mm and 1 (16mm), please omit this information. 16mm top and bottom and 20mm on the side mount (Left Side).
NEW FOG LIGHT SWITCH ILLUMINATION COLOR/TYPE OPTIONS:
|
TROUBLESHOOT: Resisors fix turn signal issues on bikes with LED turn signals that flash too quickly or not at all. Easy to install (takes about 2 minutes). Some bikes may require a Plug N Play resistor/load equalizer since LED bulbs draw very little power.
CONSUMER NOTICE: CLICK FOR MORE INFORMATION
CONDENSATION POLICY: We will replace a unit under warranty only if the light (LED) is not working; does not light. Warranty does not cover condensation as this could be a result of riding in different extreme weather conditions. It may be completely normal that there is some moisture/condensation inside the housing. We have designed the product(s) with proper ventilation for the moisture to evaporate. Visit Napa Online for more information on why condensation happens : NapaOnline.com or https://youtu.be/OdKmOQFtQxM
For CALIFORNIA residents only:
WARNING: This product contains chemicals including DEHP, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit https://www.p65warnings.ca.gov
- FITMENT:
- HONDA GOLD WING GL1800/F6B/VALKYRIE LED FOG/COWL LIGHT KIT
2012+ GL1800/F6B/VALKYRIE [Rectangular Style cowls]
- INSTALLATION:
- PLUG N PLAY
- NOTE:
- SOME MOTORCYCLE MODELS MAY REQUIRE SLIGHT MODIFICATIONS
- PACKAGE CONTENTS:
- PACKAGE INCLUDES:
1 - Pair of Rectangular LED Fog w/Daytime Running Lights
1 - Relay, 1 - Jumper, 1 - OEM style factory fog light switch
Hardware/mounting brackets/screws, Connectors
Quick Start Reference sheet
CONDENSATION POLICY: We will replace a unit under warranty only if the light (LED) is not working; does not light. Warranty does not cover condensation as this could be a result of riding in different extreme weather conditions. It may be completely normal that there is some moisture/condensation inside the housing. We have designed the product(s) with proper ventilation for the moisture to evaporate. Visit Napa Online for more information on why condensation happens : NapaOnline.com
