DETERMINE IF YOUR PASSING LIGHT BULBS ARE REPLACEABLE.

Nov 21, 2021

 NON-SEALED BEAM PASSING LIGHTS
NOTE: Make sure that your existing Passing Lights look similar to the image below and that the bulb is replaceable. Scroll to the bottom if you have sealed beams or H3 bulbs.

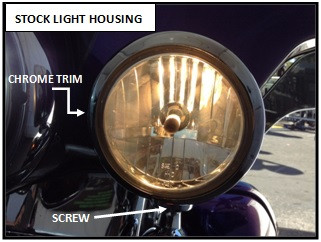

Underneath the chrome trim, there is a single screw
that you can remove. Once you remove the screw, you
can then remove the chrome trim to replace the bulb.



Open Stock Light Housing to expose the existing stock bulb. Twist counter-clockwise to remove bulb.

Remove the existing stock bulb shown here. ------------------


Plug in existing cable and new PATHFINDERLED™ LED Bulb [HDLED].
If your motorcycle does not have this type of cable, you
can order our cable [HD8PA].


If your bulb(s) is removable as shown above, then this is the correct LED replacement product for your motorcycle.

Suggested Product :

HI-POWERED LEDs - HARLEY PASSING LIGHTS - PAIR

PATHFINDERLED™ bulb replacements.
[Product Code: HDLED] HI-POWERED LEDs - Passing Lights - Pair


----------------------------------------- SEALED BEAM PASSING LIGHTS -------------------------------------

If you have a 2005 or older model, you likely have H3 bulbS or sealed beamS. See below which part numbers to use:

use part number: “H3C50W” IF YOU HAVE H3 BULBS

use part number: “HDPL45” IF YOU HAVE SEALED BEAMS

NOTE: Underneath the chrome trim, there is a single screw that you can remove. Once you remove the screw, you can remove the chrome trim that is holding the light together. If your lights are sealed beam as shown below, you will need our Xtreme™ LED Passing Spot Lamps.

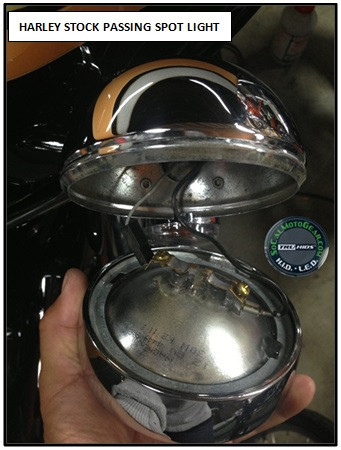

Notice that the bulb itself is not visible once the housing
is opened; therefore this is considered to be
"Sealed Beam Passing Lights".
USE PART NO: HDPL45 FOR OUR
PATHFINDERLED 4.5" PASSING LIGHTS.




REPLACES STOCK TO OUR: PATHFINDERLED™ sealed beam direct OEM replacements.
L.E.D. PATHFINDERLED 4.5" LED PASSING LAMPS
(OVER 1900 LUMENS COMBINED) PLUG N PLAY

Xtreme™ LED Passing Spot Lamps-Direct OEM Replacement


INSTALLATION VIDEO - CLICK HERE

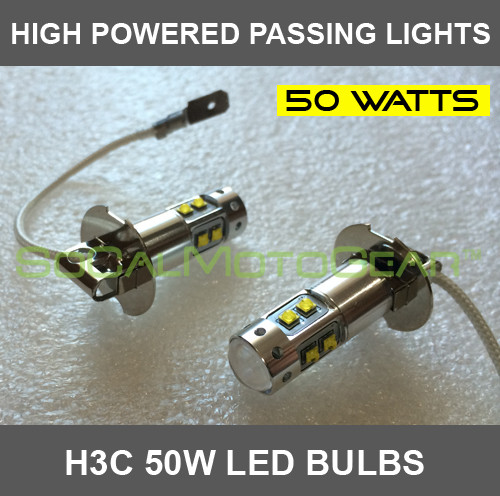

If your bulb has a single pigtail and looks like the H3 bulb, use PART NO: HDH3C

REPLACES STOCK TO OUR H3C50W LEDS:
